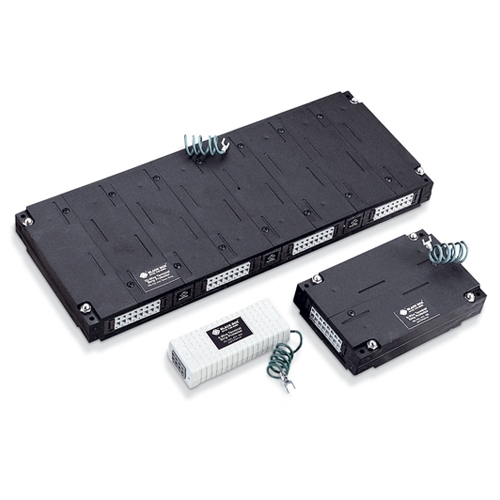

This series of protectors are designed to protect sensitive communications equipment against damaging overvoltages induced into the equipment from the signal lines or chassis ground. This protector is for RS232/V.34 and Token Ring, as well as any other protocol with less than +/-15 volts drive voltage.
The devices are based on state-of-the-art, low capacitance, avalanche diode technology. The balanced, self-resetting circuitry guarantees for high speed, high-energy protection. Low shunt capacitance design reduces the signal loss. A wide range of applications is supported for more versatility.
Engine
Signals supported: RS-232/V.24, Token Ring
Max. Data Rate: 10 Mbps
Clamping Voltage: ±18 V
Response Time: < 10 ns
Physical and Environmental
Dimensions (H x W x D):
4-wire models: 23 x 38 x 91 m
All others: 38 x 89 x 137 mm
Weight:
4-wire models: 0.1 kg
6-, 8- models: 0.2 kg
Operating Temperature Range: -50 … +100 ºC
Operating Humidity Range: 10 … 95% RH, non-condensing
