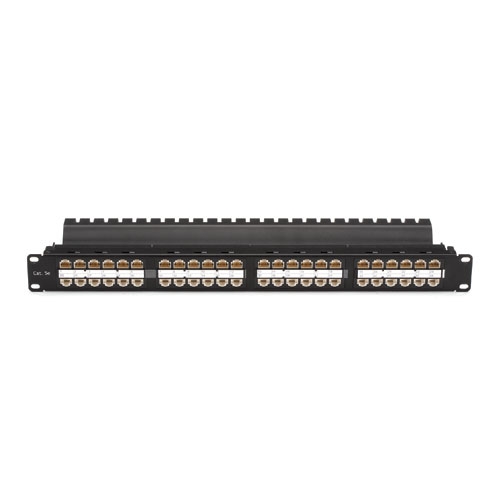

Patch Panel Feed-Through CAT5e HD

These patch panel features 48 CAT5e RJ45 to RJ45 feed-through ports.
Thus patching becomes quick and easy without punching down the wires to the ports.
A cable management bar helps support cables attached to the rear of the panel.

Save space in crowded data cabinets. Use this sturdy patch panel for high-density applications in all 19" relay racks or communications cabinets.

Choose between a shield and an unshielded version.

Connectors — (48) RJ-45 in front and (24) or (48) RJ-45 in rear
Standards — TIA/EIA-568-B.2-1 CAT6
Size — 1U, 4.4H x 48.3W x 15.3D cm
Weight —
JPM806A-HD: 1.7 kg
JPM810A-HD: 1.1 kg

(1) CAT5e High-Density Feed-Through Patch Panel
(4) 10-32 cuphead screws
(4) 12-24 cuphead screws
(8) cable ties
(8) station ID labels
