ServSwitch CX con Modulo de acceso DisplayPort
La foto puede diferir del producto real
ServSwitch CX con Modulo de acceso DisplayPort


ServSwitch CX con Modulo de acceso DisplayPort


Connect the ServSwitch CX to DisplayPort targets with USB using this SAM.


  • Use CATx cable to connect the Server Access Module (SAM) to the CX server port.
  • Place the server up to 50 m away using the ServSwitch CX 4-User, or up to 10 m away using the ServSwitch CX Uno and CX Uno with IP.
  • "Keep alive" feature powers module even if switch loses power.
  • Flash upgradable.
  • Powered from the computer interface.
  • Order one SAM for each server-to-switch connection.
  • Garantía: Garanría estándar de 2 años Double Diamond™

  Producto       Código   Precio unitario   Cantidad

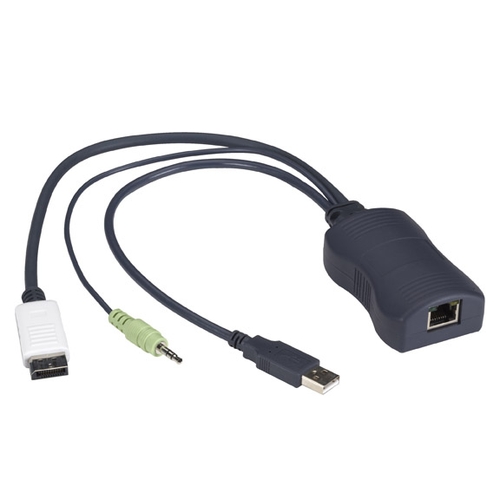

DisplayPort

USB HID, Audio
  ServSwitch CX Server Access Module, USB, DisplayPort, and Audio
ServSwitch CX Server Access Module, USB, DisplayPort, and Audio
  KV1408A
Consultar

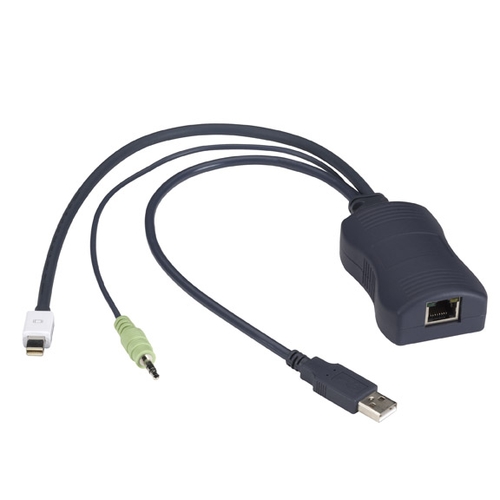

Mini DisplayPort

USB HID, Audio
  ServSwitch CX Server Access Module, USB, mini DisplayPort, and Audio
ServSwitch CX Server Access Module, USB, mini DisplayPort, and Audio
  KV1409A
Consultar

Order one SAM for each server-to-switch connection.

This product works with:
ServSwitch CX 4-User models (KV0424A-R2, KV1416A-R2, KV0416A-R2)
ServSwitch CX Uno (KV0081A, KV0161A)
ServSwitch CX Uno with IP (KV1081A, KV1161A)



Acciones
Manuales
ServSwitch CX con Modulo de acceso DisplayPort Manual
