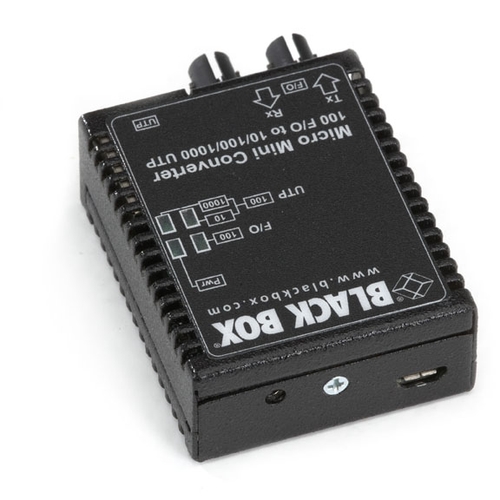

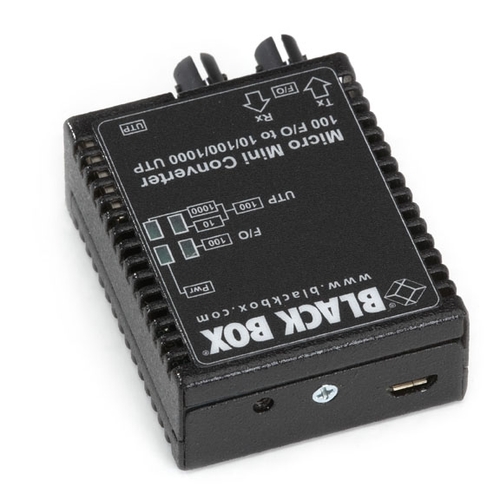

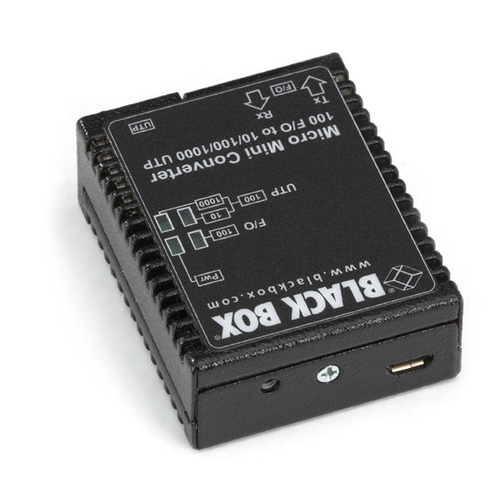

Micro Mini convertidor de medios 100M

The Micro Mini Media Converter is ideal for bringing fibre to the desktop and for mobile applications where light weight, compact size, and low power requirements are critical.

Weighing only 70 gramms and having about the length of a house key, this ultra-compact media converter is portable yet powerful. For extra versatility, it can be USB-powered, making it easy to provide fibre connectivity to locations where AC or DC power is unavailable, for instance, field-deployed fibre-to-the-laptop. For easy portability, this tiny converter conveniently slips into a pocket or laptop carrying case.

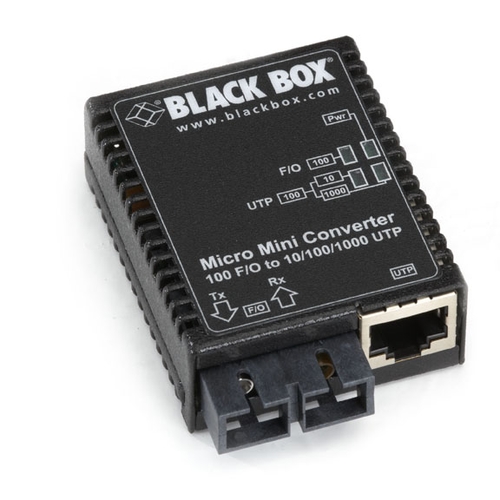

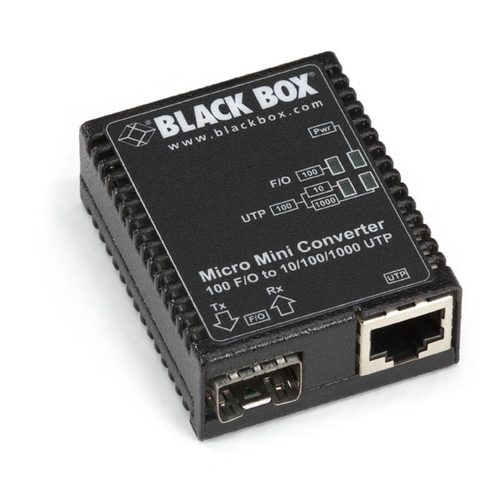

The converter is plug-and-play with an RJ-45 port that autonegotiates for speed, duplex mode, and crossover functions for PCs with 10BASE-T, 100BASE-TX, and 1000BASE-T Ethernet. On the fibre side, the converter has an ST or SC connector for connection to single-mode or multimode. On the fibre side, LMC400A accepts SFPs for connection to a variety of Fast Ethernet fibre types. Use 155-Mbps SFPs.

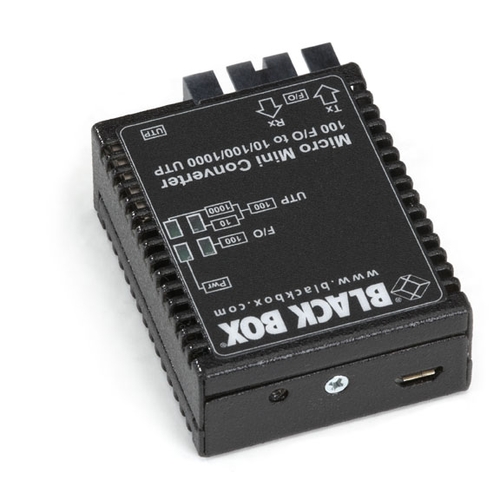

Because it can be powered through a computer’s USB 1.0 or 2.0 port, the Micro Mini Media Converter is ideal for connections to fibre in areas where a spare power outlet may not be available. When plugged into a computer’s USB port, the media converter shuts down automatically when you turn off the computer, which saves energy.

Environmental —
Operating temperature: 0 to +50° C;
Storage temperature: -40 to +80° C;
Humidity: 5 to 95%, noncondensing
Connectors — (1) RJ-45 10/100/1000-Mbps Ethernet;

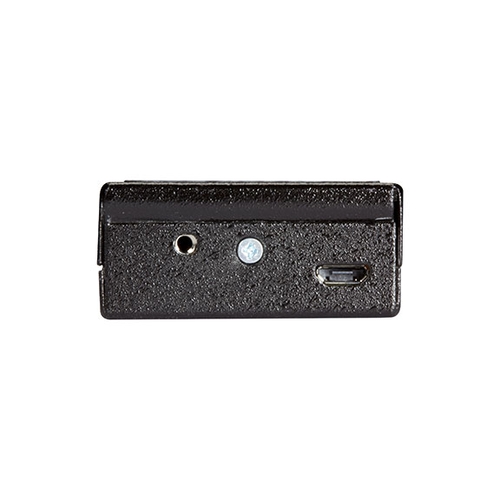

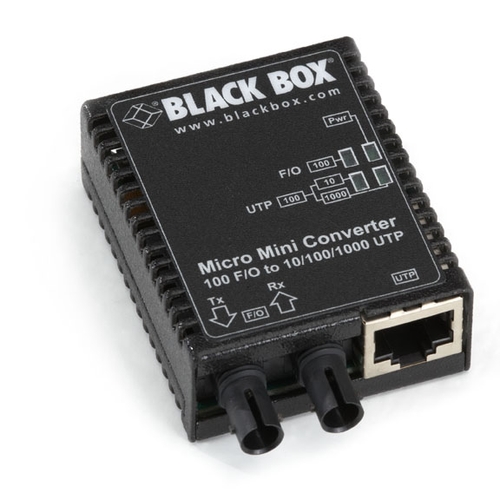

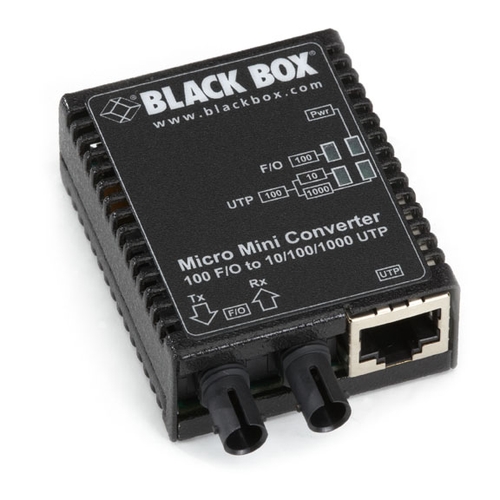

LMC401AE: (1) USB Type Micro B; (1) pair of ST

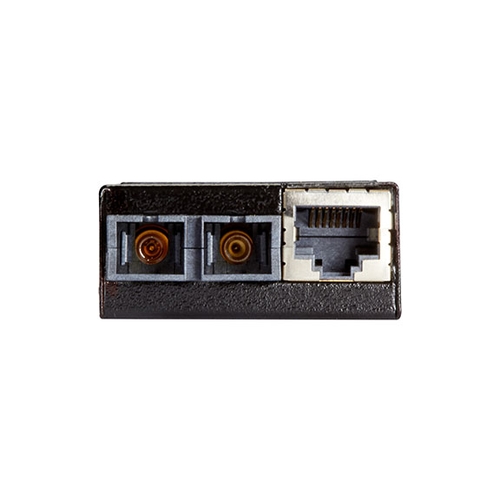

LMC402AE: (1) USB Type Micro B; (1) pair of SC
LMC404AE: (1) USB Type Micro B; (1) pair of SC
Power — 100–240 VAC, 50–60 Hz, 0.01A @ 240 V external power supply or from a PC’s USB port, 0.5 A @ 5 VDC
Size — 2.1(H) x 4.4(W) x 5.7(D) cm
Weight —
Without power adapter: 70.8 g;
With USB cable: 107.7 g;

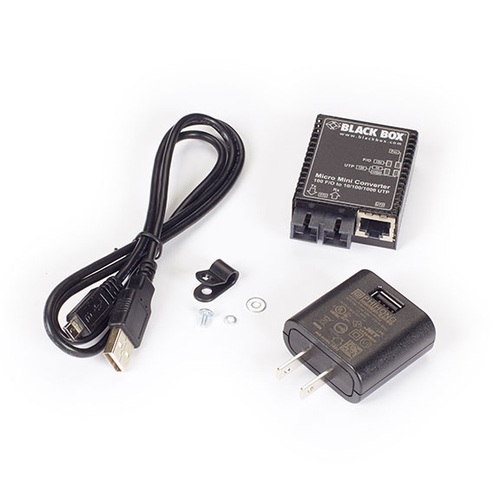

With AC power adapter (U.S.) and USB: 155.9 g
