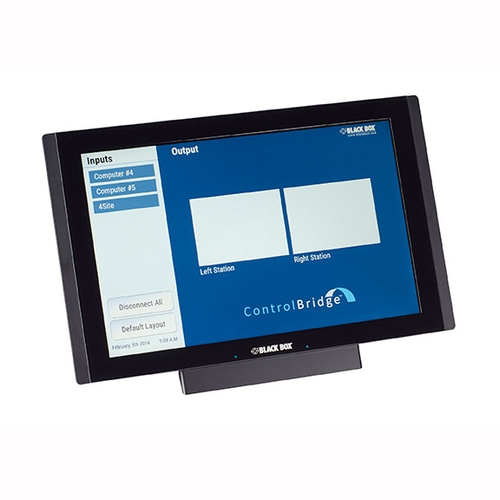

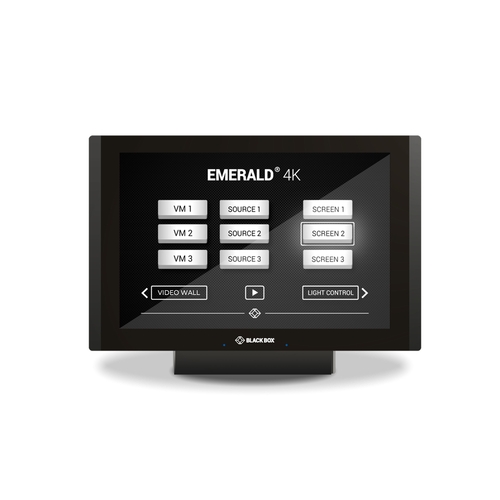

This wired, tabletop panel provides an elegant one-touch solution for controlling Ethernet-enabled systems in meeting rooms, class rooms, and control rooms. Use the touch panel alone or with a ControlBridge® Processor to control devices with I/O interfaces. You can program the panel with the included ControlBridge Builder software.

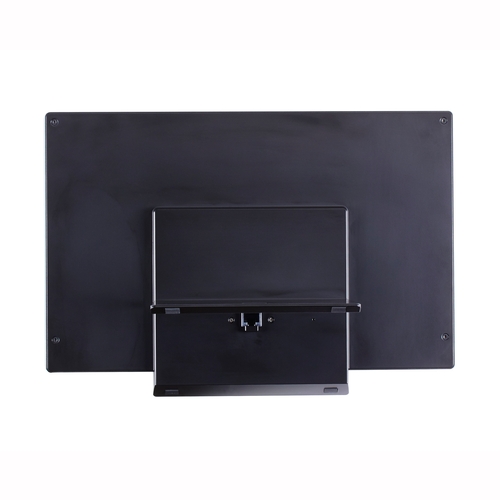

The touch panel features a clean, modern design with an edge-to-edge glass front. The slim, low profile aluminum body includes a tabletop stand. It’s designed to sit on tables without obstructing views. And, the Ethernet cable connection is hidden in the back.
The video preview feature enables streaming or downloaded video to be viewed anywhere on the display. The color touch-screen panel offers stunning true-color images with resolutions of 1280 x 800 pixels. The projected capacitive touch overlay enables the panels to be used in any light setting. And it’s easy to keep clean.
The panel includes a light sensor for automatic backlight dimming. A proximity sensor enables the backlight to be automatically turned on. A single Ethernet cable connection provides easy network integration. And, PoE eliminates the need for separate power cables.
ControlBridge® in KVM Applications
ControlBridge® Control Room Application for KVM is an active matrix touch-screen display for control rooms that will save you money and make your life easier — . Forget about expensive custom programming. The ControlBridge® Control Room touch-screen command center does the work for you by auto-discovering all devices on your Black Box DKM or Agility KVM networks.
Display
Audio —Built-in microphone and speakers
Colors —32-bit True Color
Connectors —Network: RJ-45
Contrast Ratio —
7”: 800:1
12” 1000:1
Memory—RAM: 512 MB; microSD card (8 GB) min.
Network—Wired: 10/100BASE-T; RJ-45
Pixels—
7” Density: 216 ppi; Pitch: 0.116 x 0.116 mm
12” Density: 125 ppi; Pitch: 0.204 x 0.204 mm
Resolution —1280 x 800 pixels
Response Time —
7”: 20 ms
12” 15 ms
Sensors —(2)Light, proximity
Dimensions —7" or 12.1” diagonal
Touch Overlay —Projected capacitive, edge-to-edge glass
Transparency—8-bit Alpha blending
White Luminance —400 cd/m2
Power —IEEE 8 02.3af PoE adapter
Type —Color a-Si TFT LCD with LED backlit
Viewing Angle —±80° horizontal; ± 80° vertical
Video —Streaming video preview; Formats: MJPEG, H.264
Physical
Dimensions —
7”: 11.5H x 19.9W x 9.7D cm
12”: 19.2H x 32W x 15.3D cm
Weight —
7”: 0.8 kg
12” 2.4 kg
Environmental
Operating Temperature —10° to 40° C (50° to 104° F)
Storage Temperature —0° to 60° C (32° F to 140° F)
(1) Touch Panel Controller
(1) PoE adapter plus power cable
(1) Ethernet cable
(1) Cleaning tissue
